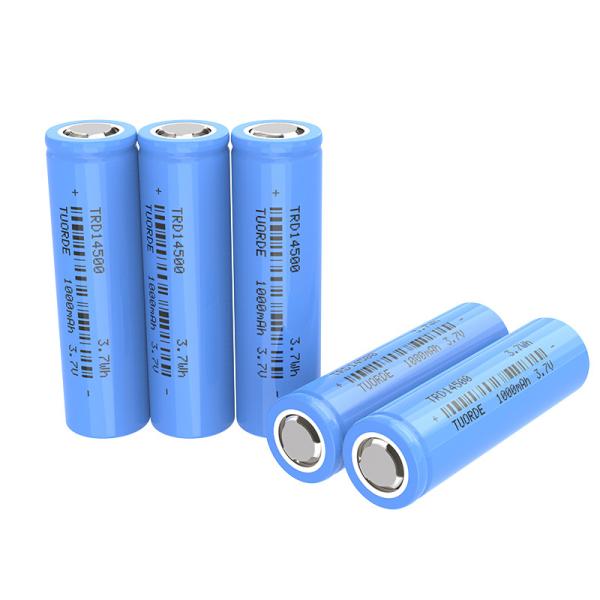

3.7V 1200mAh 14500 Lithium Ion Battery Cell More Than 500 Cycles

Product Categories

Shenzhen Tuorde Energy Co., Ltd

Contact Now

Name: 37V 1200mAh 14500 Lithium Ion Battery Cell More Than 500 Cycles
Brand: Tuorde
Price: 1 USD

Brand Name : Tuorde

Model Number : TRD14500-1200

Certification : CE/Rohs/MSDS/UN38.3/BIS

Place of Origin : China

Voltage : 3.7V

Model : 14500 1200mAh

Max Charge Voltage : 4.255V

Charge/Discharge Rate : 0.5c

Internal Impedence : ≤40MΩ

OEM : Accept OEM and ODM

Operating Temperature : -20°C to 60°C

Net Weight : 20g

Warranty : 1Year

Application : Flashlight,electric fan,toys

Contact Now

3.7V 1200mAh 14500 cell,energy cell,more than 500 cycles

High capacity,High quality

Shenzhen Tuorde energy Co.,Ltd is a professional and reliable manufacturer in China.

No.	Item	Specifications
1	Model No.	TRD14500-1200
2	Typical Capacity	1200mAh @0.2C Discharge
3	Nominal voltage	3.7V
4	Standard Charge	CC/CV,0.2C,4.255V
5	Standard Discharge	CC,02C,2.5V
6	Cut-off charge Voltage	4.255V
7	Cut-off charge Current	0.02C(At CVmode)
8	Cut-off discharge Voltage	2.5V
9	Charging Time	8.0hours(standard charge)
10	Quick Charge Current	600mA(0.5C)
11	Quick Discharge Current	600mA(0.5C)
12	Max Discharge Current	600mA(0.5C)
13	Initial Impedance	≤40mΩ
14	Weight	Approx:20 g
15	Operating temperature	Charging:0℃~45℃ Discharging:-10℃~60℃
16	Storage temperature	-10℃~45℃≤ one months
17	Storage Humidity	≤75%RH
18	Standard environmental condition	Temperature:25±2℃ Humidity:45-75%RH Atmospheric Pressure:86-106KPA

3.7V 1200mAh 14500 Lithium Ion Battery Cell More Than 500 Cycles

3.7V 1200mAh 14500 Lithium Ion Battery Cell More Than 500 Cycles Images
